HOSHIMA GT01S Series: The Ultimate Small Size Electronic Pattern Sewing Machine for Garment Automation
In the highly competitive Ready-Made Garment (RMG) hubs of Bangladesh (Dhaka, Chittagong) and India (Tirupur, Bangalore, Surat), factory efficiency and precision are the ultimate deciders of profitability. Handling small components—such as stitching brand labels, securing velcro tapes, or sewing decorative embroidery on jeans back pockets—using traditional single-needle lockstitch machines creates massive production bottlenecks. Manual feeding often leads to crooked labels, uneven stitch margins, and high rejection rates (rework).

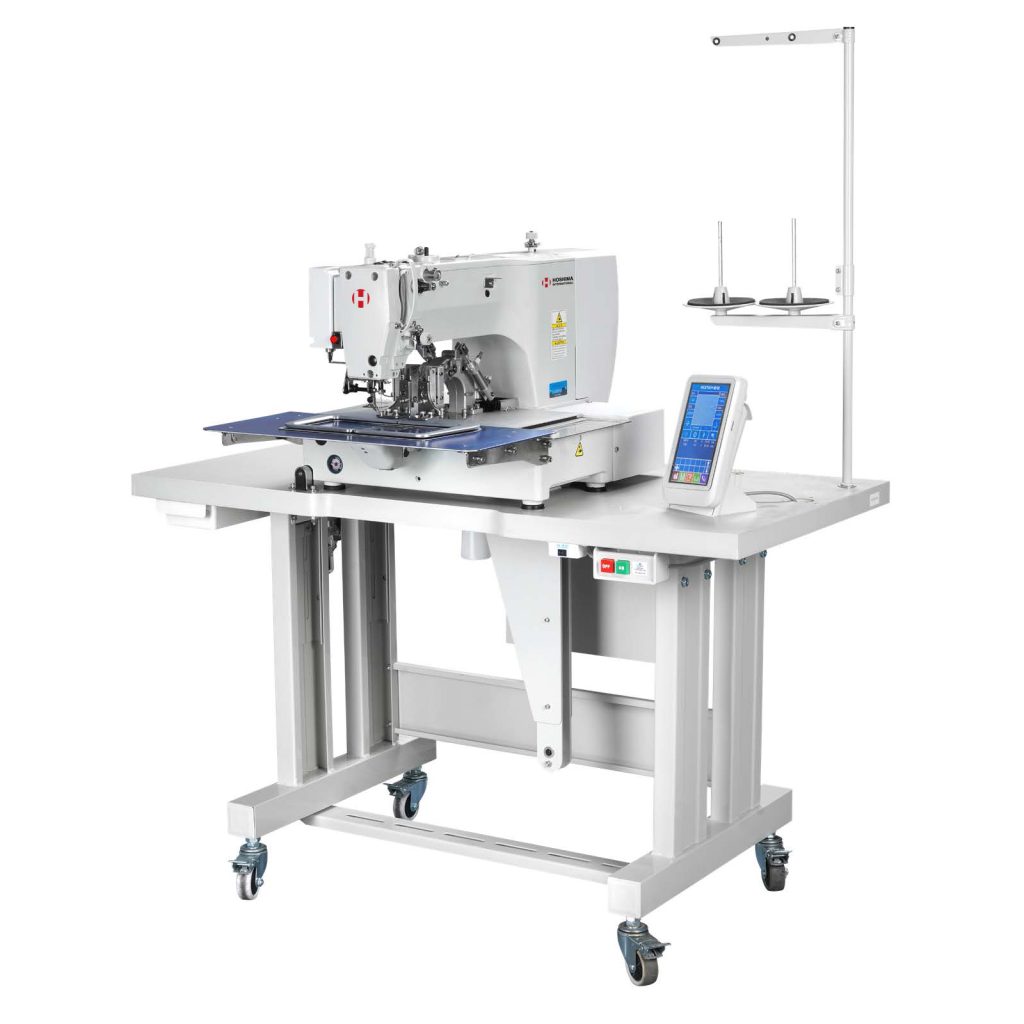

The HOSHIMA GT01S Series (1010GT / 1310GT / 1510GT / 2210GT) enters the market as a game-changing small size electronic pattern sewing machine. Designed specifically to automate the processing of small parts, this series delivers flawless stitch consistency at lightning-fast speeds, completely removing human error from specialized operations.
1. High-Value Industrial Applications in Modern Garment Lines
Equipped with a highly adaptable pneumatic clamp system and programmable software, this small size template sewing machine seamlessly handles complex, repetitive tasks across various garment categories:
-
Jeans Back Pocket Decorative Stitching: Automatically executes intricate brand embroidery, logos, and arcuate designs on denim pockets before they are assembled onto the jeans.
-
Automatic Label Attaching & Mác Áo Stitching: Transforms your assembly line into a high-speed production setup. It effortlessly handles woven neck labels, care labels, and heavy leather patches on jeans waistbands, finishing a perfect rectangular stitch pattern in less than 3 seconds.
-
Velcro and Small Pocket Welting: Provides pinpoint accuracy for stitching velcro patches onto tactical gear, sportswear, and industrial uniforms.
-
Intricate Fabric Embellishments: Perfect for attaching high-fashion emblems, embroidery badges, or customized fabric cutouts onto premium apparel.
2. Key Technical Advantages for Factory Upgrades
Custom Sewing Areas to Reduce Material Footprint
Garment factories can choose from four distinct field sizes to perfectly match their production components, preventing unnecessary space consumption and optimizing cycle times:
-
1010GT-01S (100 × 100 mm): Ultra-compact, engineered for small items like velcro tabs and care labels.
-
1310GT-01S (130 × 100 mm): Tailor-made for standard garment neck labels and small pocket flaps.
-
1510GT-01S (150 × 100 mm): Ideal for medium-sized branding elements and casual wear components.
-
2210GT-01S (220 × 100 mm): Extended horizontal reach, perfect for wide leather patches on denim or elongated decorative pocket designs.
High-Speed Operation at 2800 rpm
Engineered for heavy-duty industrial cycles, the series clocks a maximum sewing speed of 2800 rpm. Driven by an intermittent pulsed motor feeding system, the machine calculates and executes sharp 90-degree corner turns effortlessly, completely eliminating fabric bunching or bird-nesting at critical corner junctions.
Massive Pattern Memory & Smart Input

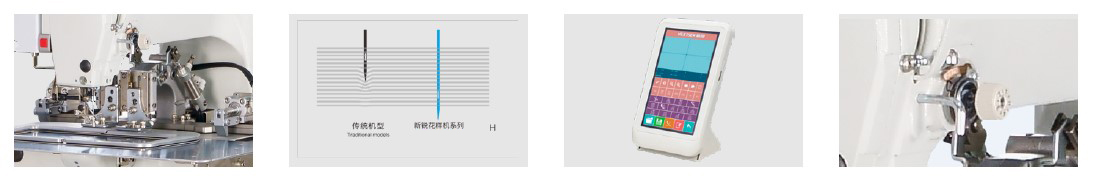

As a premier programmable pattern sewing machine, it features a large, programmable color touchscreen panel that makes pattern editing simple. Operators can store up to 20,000 stitches per single pattern, with quick file transfers available via a standard USB port. This allows factories to switch styles or change production lines almost instantly.
3. Comprehensive Technical Specifications of Small Pattern Template Sewing Machine HSM-GT-01S Series
The following table outlines the exact factory configurations for the HOSHIMA GT01S Series.
| Technical Specification | 1010GT-01S | 1310GT-01S | 1510GT-01S | 2210GT-01S |
| Application | Flat-stitching pattern sewing machine (2-time large capacity hook) | |||
| Stitch Type | Single-needle flat lockstitch seam | |||
| Max. Sewing Speed | 2800 rpm | |||
| Sewing Area (X × Y) | 100 × 100 mm | 130 × 100 mm | 150 × 100 mm | 220 × 100 mm |
| Feeding Device | Intermittent feed driven by pulsed servo motor | |||
| Stitch Length | 0.05 mm – 12.7 mm | |||
| Max. Number of Stitches | 20,000 stitches per single pattern | |||
| Presser Foot Drive Mode | Electric (S) / Pneumatic (A) Options Available | |||
| Height of Presser Foot | Max. 30 mm | |||
| Two-Step Presser Foot | One-piece presser foot system | |||
| Intermittent Pressure Working Area | 22 mm | |||
| Intermittent Pressure Stroke | 0 or 2 – 10 mm (Factory default setting: 3 mm) | |||
| Hook System | 2-Time Double Capacity Shuttle Hook (Standard shuttle is optional) | |||
| Thread Trimming Device | Standard Equipped | |||
| Thread Cutting Device | Standard Equipped | |||
| Data Storage / Input | USB Port Interface | |||
| Main Drive Motor | High-torque 750W AC Servo Motor | |||
| Power Supply Requirements |
Single-Phase: 100V~120V / 200V~240V Three-Phase: 200V~240V / 380V~415V |
|||
| Air Pressure & Consumption | Working Pressure: 0.5 Mpa | Flow Rate: 1.8 L/min |
4. Industrial Engineering (IE) Insights & Factory ROI
From an Industrial Engineering standpoint, upgrading your sewing floor with the HOSHIMA GT01S Series addresses the core challenge of modern apparel production: reducing manual handling times while maintaining strict quality control.
Backed by a powerful 750W AC servo motor and an extra-large 2-time capacity shuttle hook, this series provides incredible needle penetration power. It handles heavy 14 oz raw denim, multiple fabric plies, and rigid leather patches without dropping speed or breaking threads. For manufacturers across India and Bangladesh looking to combat rising labor costs and meet tighter shipment deadlines, investing in the HOSHIMA GT01S Series delivers an immediate boost in throughput and an incredibly fast return on investment (ROI).
