Máy xẻ tà áo Polo tự động HSM-JC8A-02-ASSM

Automated Polo Side Slit Machine HSM-JC8A-02/ASSM

Description

Description

HSM-JC8A-02/ASSM: Polo Side Slit Machine (Polo Side Vents Sewing Machine)

The HSM-JC8A-02/ASSM machine is specifically designed to perform the side slit (side vent, hem slit) operation on polo shirts automatically, quickly, and accurately. With the combination of a patented synchronous mechanism and intelligent features , the machine ensures consistent sewing quality on various fabric types, from thin to thick.

Key Features

Exclusive Patented Synchronous Presser Foot: Utilizes a patented design mechanical synchronous presser foot.
Even Fabric Pressing System: The special design vertical up-and-down moving presser plate assures even pressure on the fabric , making it suitable for different kinds and thicknesses of fabric and greatly reducing the need for repeated adjustments.
Simultaneous Lockstitch and Bar-Tack Completion: Lockstitch and bar-tack are finished together in seconds, achieving super high speed.
Adjustable Suction Positioning System: Features an adjustable suction motor. The fabric is not required to be pre-shaped , making it suitable for both thin and thick materials.
Convenient Stuff Collector (Fabric Trough): The elevating collector (stuff collector) makes it convenient for the operator to place garments and sewing subsidiary material and allows bobbin thread change conveniently.
Intelligent Thread Breakage Detection and Alarm: Equipped with an intelligent thread breakage detecting and alarm system. Optional with bird’s nest prevention function.

Diverse Applications

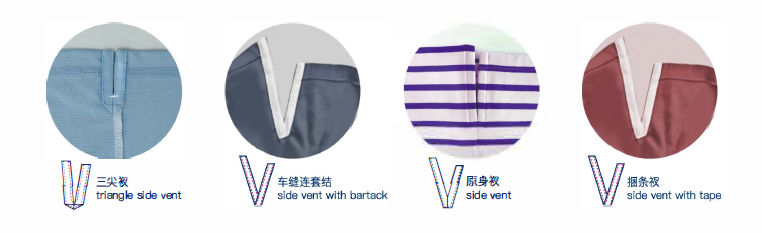

HSM-JC8A-02/ASSM Polo Side Vents Sewing Machine can sew different type of vents

The machine is capable of performing various styles of polo shirt side slits, including:

Triangle side vent.
Side vent with bartack.
Plain side vent.
Side vent with tape.

Technical Parameters

Parameter	Detail
Model	HSM-JC8A-02/ASSM
Power	$2200 \text{W}$
Voltage	$220 \text{V}$
Working Air Pressure	$0.5 \text{ MPa}$
Vacuum Motor Power	$1500 \text{W}$
Max Speed	$3200 \text{ sti/min}$
Stitch Range	$0.5 \text{ – } 5 \text{ mm}$
Needle Type	$\text{DP}*17 \ 9\#-14\#$
Machine Size	$1100 \times 1080 \times 1200 \text{ mm}$
Packing Size	$1350 \times 1200 \times 1440 \text{ mm}$
Weight (Net/Gross)	$230 \text{ kg} / 302 \text{ kg}$
