HSM-HYT-5040A Automatic Elastic Band Joining Machine for Garment Production

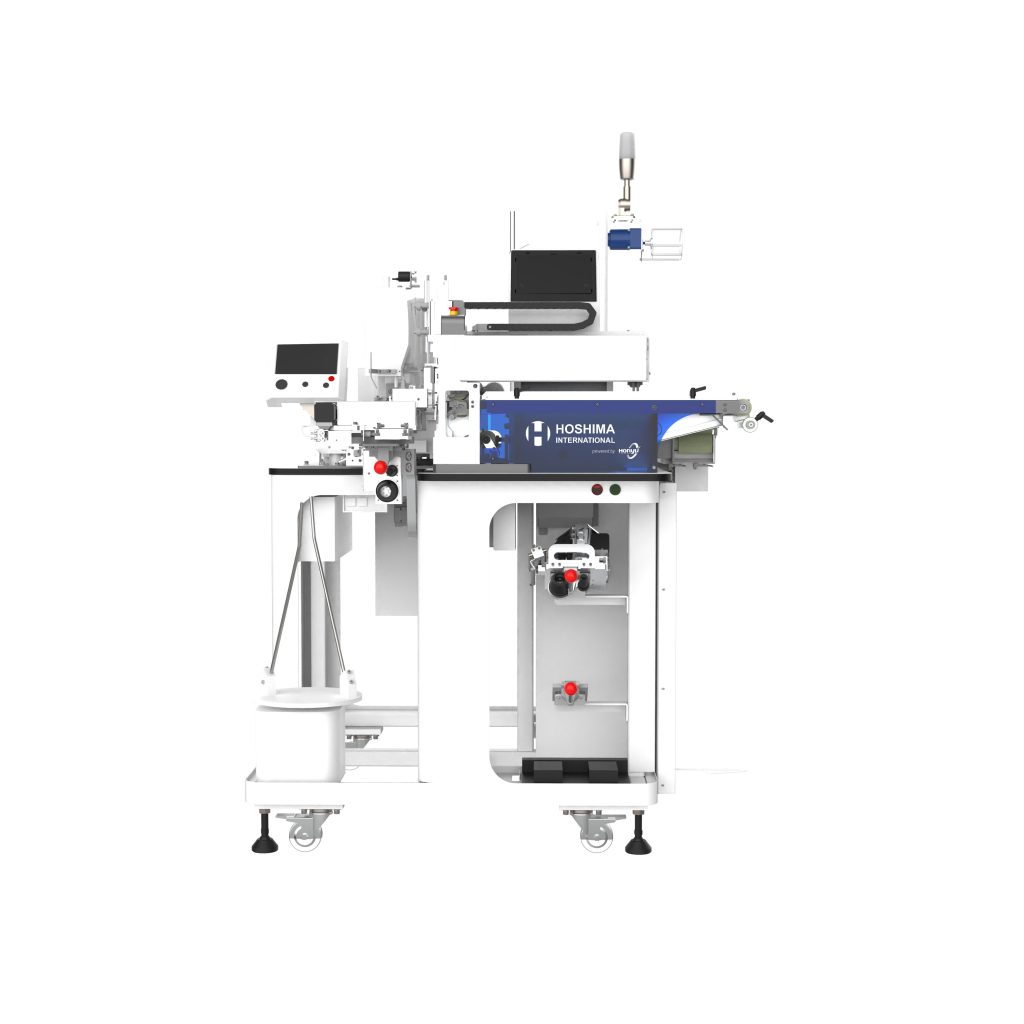

Elastic Band Joining Machine HSM-HYT-5040A
The HSM-HYT-5040A Automatic Elastic Band Joining Machine is a high-performance solution designed to enhance the efficiency, precision, and consistency of elastic band joining in garment manufacturing. It is particularly well-suited for producing underwear, sweatpants, and sports shorts, where speed and quality are equally important.
This machine significantly reduces labor costs by automating the traditionally manual task of elastic band sewing, while maintaining excellent accuracy and clean finishes. Whether you’re operating a large-scale factory or a specialized apparel production line, the HSM-HYT-5040A integrates seamlessly into your workflow to deliver uniform results across all garment types. Its compatibility with multiple sewing machines and advanced features like mark positioning and visual recognition make it a versatile choice for modern factories aiming to scale efficiently while maintaining high-quality standards.
🔧 Features of the Automatic Elastic Band Joining Machine
-
Elastic Width Compatibility:
– 15–65mm (with Brother BAS 311HN-03S)
– 15–50mm (with Brother KE-430-HS) -
Minimum Girth: 240mm – ideal for small garment openings
-
Recommended Speed: 2000–2300 RPM
-
Low Noise: Operating at ≤80 dB
-
Power Efficient: 1000W with 0.5–0.6 Mpa vacuum pressure
🛠️ Optional Configurations
-
Sewing Machine Options:
– Brother BAS 311HN-03S
– Brother KE-430-HS -
Mounting Base Options:
– Weld base (H)
– Seam base (P)
– Dual base (/) – weld and seam included -
Advanced Features:
– Mark positioning device (D)
– Visual recognition system (S)
📏 Technical Specifications
Specification | Value |
---|---|
Elastic Width | 15–65mm / 15–50mm |
Minimum Girth | 240mm |
Voltage | 220–240V |
Power Consumption | 1000W |
Vacuum Pressure | 0.5–0.6 Mpa |
Dimensions (L×W×H) | 1300 × 1200 × 1800 mm |
Recommended Speed | 2000–2300 RPM |
Machine Weight | 374 kg |
Noise Level | 80 dB |
👕 Suitable Applications
-
Underpants
-
Sweatpants
-
Sports shorts
-
Stretch-fabric clothing
-
Activewear and lounge apparel production
Explore how the machine work, the automatic elastic band joining machine ensures smooth and consistent joining of elastic bands without manual intervention
