Description

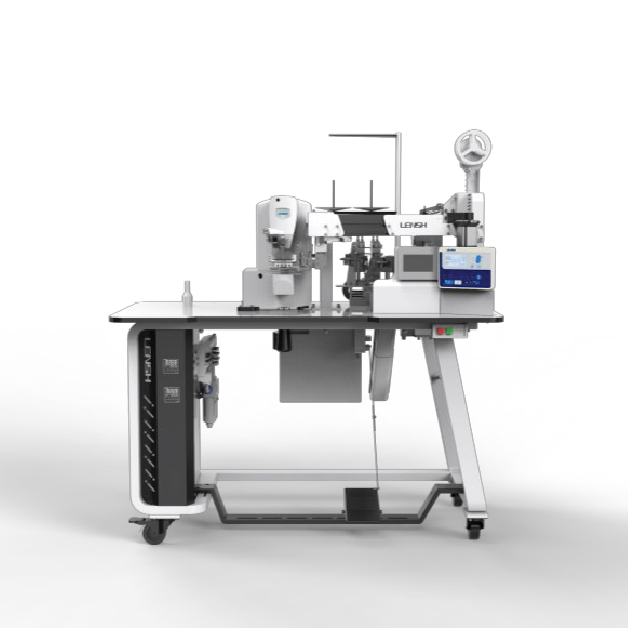

HSM-10/AWMN Automatic Waistband Multi-Needle Sewing Machine: One Operator Runs Two Units

The HSM-10/AWMN Automatic Waistband Multi-Needle Sewing Machine is a dedicated machine for the elastic waistbanding process, using a multi-needle mechanism that sews multiple parallel stitch lines simultaneously on the same waistband — suited to products requiring a sturdy, decorative waistband with multiple visible stitch rows.

📌 This is a multi-needle machine, distinct from the single-needle HSM-08/AEAM elastic attaching machine covered previously. If your factory needs a simple, single-line waistband seam, see: “HSM-08/AEAM Automatic Elastic Attaching Machine”. If you need a waistband with multiple stitch rows for extra strength and a premium look (common on joggers and premium sportswear), the HSM-10/AWMN is the better fit.

---

Why Does Waistbanding Need a Multi-Needle Machine?

For joggers and premium sportswear, the elastic waistband needs more than even stretch — it typically requires multiple parallel stitch rows for added strength and a decorative finish. Sewing multiple parallel stitch lines manually demands very high operator skill to maintain even spacing between needle lines — otherwise, the waistband looks unprofessional and is prone to failing quality inspection.

---

How the HSM-10/AWMN Solves This

• Automatic selvedge control: keeps the fabric edge aligned throughout the sewing process.
• No positioning needed for the elastic, sewn evenly automatically: similar to the HSM-08 series, operators don’t need to manually align the elastic before sewing.
• Multiple needle gauges available: flexible to match different waistband stitch-row design requirements.
• Auto start-stop with perfectly aligned overlapping stitches: ensures the seam joint is neither misaligned nor overlapping incorrectly.
• Automatic thread trimming and waste collection: reduces manual clean-up after sewing.
• One-key start; one operator can run two machines simultaneously: optimizes labor cost, similar to other SPMs in this product family.

---

Performance

Technical Specifications

Full Feature List

1. Does not rely on skilled sewing workers, easy to use.
2. Automatic selvedge control.
3. Efficiency: 12–15 seconds/piece.
4. Sews elastic bands 20–55mm wide, 760–1500mm in perimeter.
5. One-key start; one operator can run two machines simultaneously.
6. Elastic band requires no positioning, sewn evenly automatically.
7. Multiple needle gauges available for selection.
8. Auto start-stop with perfectly aligned overlapping stitches.
9. Automatic thread trimming and waste collection.

---

Real-World Applications

The machine is built for the elastic waistbanding process on:

• Jogger pants with side stripes, requiring multiple parallel stitch rows on the waistband.
• Standard sweatpants and sportswear with elastic waistbands.
• Khaki/corduroy pants combining an elastic waistband with decorative stitch rows.

---

Which Factories Should Invest in the HSM-10/AWMN?

• Manufacturers of joggers and premium sportswear requiring a sturdy, decorative multi-row waistband stitch.
• Factories struggling to maintain even spacing between multiple parallel stitch lines when sewn manually.
• Factories looking to optimize labor cost through the one-operator-two-machine mechanism.

📖 This is another example of a Special Purpose Machine (SPM) dedicated to a single operation — learn more in: “What Is a Special Purpose Machine (SPM)? How It Differs From Standard Industrial Sewing Machines”

---

Frequently Asked Questions

How is the HSM-10/AWMN different from the single-needle HSM-08/AEAM elastic attaching machine?

The HSM-10/AWMN uses a multi-needle mechanism, sewing multiple parallel stitch lines on the same waistband, suited for designs requiring multiple stitch rows. The HSM-08/AEAM is a single-needle machine, suited for a simpler waistband requiring only one stitch line. Both share the one-operator-two-machine capability and require no skilled workers.

Can the number of needle lines be customized to match a design?

Yes. The machine supports multiple needle gauges, allowing factories to flexibly adjust the number of stitch rows on the waistband according to each order’s design requirements.

Is this machine suitable for different fabric types?

The machine is suited to stretch fabrics commonly used for joggers, sportswear, sweatpants, and select khaki/corduroy fabrics combined with elastic waistbands. Consult the supplier’s technical team for specialty fabrics.

---
