LS-9072A Automatic Heat Transfer Machine: AI Inspection Before & After Pressing, +300% Output
The LS-9072A Automatic Heat Transfer Machine is an industrial heat-transfer press built for chest logos and back-neck labels. What sets it apart from conventional heat press machines is its dual AI camera inspection system — checking label/logo placement before pressing, and verifying finished quality after pressing — combined with a 5-head rotary pressing mechanism that dramatically increases throughput.
The Problem with Manual Heat Transfer Logo Application
In a traditional heat transfer workflow, operators manually place the logo or label onto the fabric before it enters the press. This commonly leads to:
- Misaligned logos/labels due to inconsistent manual placement across pieces.
- Late-stage defect detection — misalignment or pressing defects are often only caught after the garment is finished, wasting material and requiring costly rework.
- Slow throughput, since every feeding and unloading step depends entirely on manual handling.
How the LS-9072A Solves This with Dual AI Inspection
This is the core differentiator of the LS-9072A compared to standard heat transfer machines on the market:
- AI camera inspection before pressing: the machine automatically detects the position and alignment of the label/logo on the fabric piece before heat transfer begins, catching misalignment at the input stage rather than letting it pass through to the finished product.
- AI camera inspection after pressing: once the heat transfer cycle is complete, the system re-scans the piece to confirm the finished quality meets standard before it moves to the collection stage — minimizing the chance of a defective piece reaching final output.
- 5-head rotary pressing system: instead of pressing one piece at a time sequentially like a single-head machine, the automatic heat transfer machine LS-9072A operates 5 pressing heads in a continuous rotary cycle, maximizing the number of pieces processed per unit of time.
Combined, these three elements deliver an output increase of approximately 300% compared to older-generation heat transfer machines.
The machine also includes a standard piece anti-shift device, which holds the fabric piece firmly in place as it rotates between pressing heads, preventing defects caused by fabric drifting during high-speed operation.
Performance Automatic Heat Transfer Machine vs. Manual Heat Transfer Method
| Metric | Before (manual heat transfer) | After LS-9072A |
|---|---|---|
| Processing time | ~23–28 sec/piece | ~7 sec/piece |
| Method | Manual feeding and collection, low efficiency | Upper/lower heating, dual AI visual inspection, cold pressing, automatic large/small piece collection |
| Output gain | — | ~300% increase |
LS-9072A Model Variants
| Variant | Description |
|---|---|
| LS-9072A (Standard) | Base configuration |
| LS-9072A-X | Standard + small pieces collection |
| LS-9072A-R | Standard + underheat (lower heating plate) |
| LS-9072A-XR | Underheat + small pieces collection (full configuration) |
Technical Specifications
| Parameter | LS-9072A / X | LS-9072A-R / XR |
|---|---|---|
| Voltage | 220V, 50–60Hz, Single phase | 220V, 50–60Hz, Single phase |
| Power | 4 KW | 6.5 KW |
| Air pressure | 0.5–0.6 MPa | 0.5–0.6 MPa |
| Air consumption | 400 L/min | 400 L/min |
| Machine dimensions | 2515 × 2230 × 1910 mm | 2515 × 2230 × 1910 mm |
| Packing dimensions | 2300 × 1700 × 1960 mm | 2300 × 1700 × 1960 mm |
| Net weight | 970 kg | 970 kg |
| Gross weight | 1150 kg | 1150 kg |

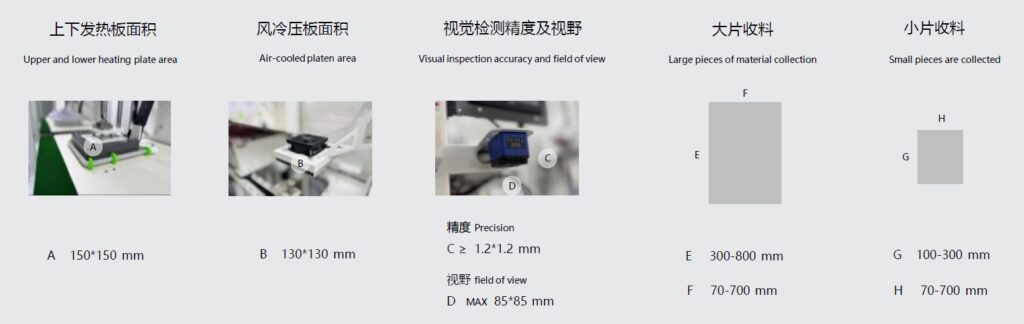

Pressing Area & Visual Inspection Specifications
| Symbol | Meaning | Value |
|---|---|---|
| A | Upper/lower heating plate area | 150 × 150 mm |
| B | Air-cooled platen area | 130 × 130 mm |
| C | Visual inspection precision | ≥ 1.2 × 1.2 mm |
| D | Camera field of view | Max 85 × 85 mm |
| E, F | Large piece collection size | 300–800 mm / 70–700 mm |
| G, H | Small piece collection size | 100–300 mm / 70–700 mm |
Key Features
- Dual AI inspection (before & after pressing): ensures both input alignment (logo/label placement) and output quality (finished product) are automatically verified, reducing reliance on manual visual checks.
- 5-head rotary pressing mechanism: optimizes line speed, suited for high-volume factories processing large quantities of logo/label pieces per shift.
- Standard piece anti-shift device: prevents defects caused by fabric drifting or shifting during rotation between pressing heads.
- Remote data collection system (optional): monitors failure rate data, capacity data, and usage data — supporting digital, data-driven production management.
- 4 configurable variants: flexible to match single-side vs. dual-side heating needs and large/small piece collection requirements of each factory.
Who Should Use the LS-9072A?
- Export-oriented garment factories requiring high-volume chest logo or neck label application with strict alignment accuracy (e.g., branded sportswear, premium fashion labels).
- Manufacturers currently experiencing high defect rates from manually-applied logos, looking to automate quality inspection.
- Factories aiming to reduce dependency on manual visual inspection and increase heat-transfer line speed.
Frequently Asked Questions
Does the LS-9072A automatically detect a misaligned logo before pressing?
Yes. The machine uses AI camera vision to check the position and alignment of the label/logo before heat transfer begins, catching misalignment at the input stage instead of only detecting it after the garment is finished.
What’s the difference between the LS-9072A, X, R, and XR variants?
The standard variant covers basic needs; the X variant adds small piece collection; the R variant adds underheat (lower heating plate) for materials requiring dual-side heat; the XR variant combines both features.
How does the 5-head pressing mechanism increase output?
Instead of pressing pieces sequentially on a single head like a conventional machine, the LS-9072A runs 5 pressing heads in a continuous rotary cycle — while one head is pressing, the others simultaneously handle feeding, inspection, cooling, and collection, reducing wait time between cycles.
