HSM-1512B Pattern Template Cutting Machine

Description

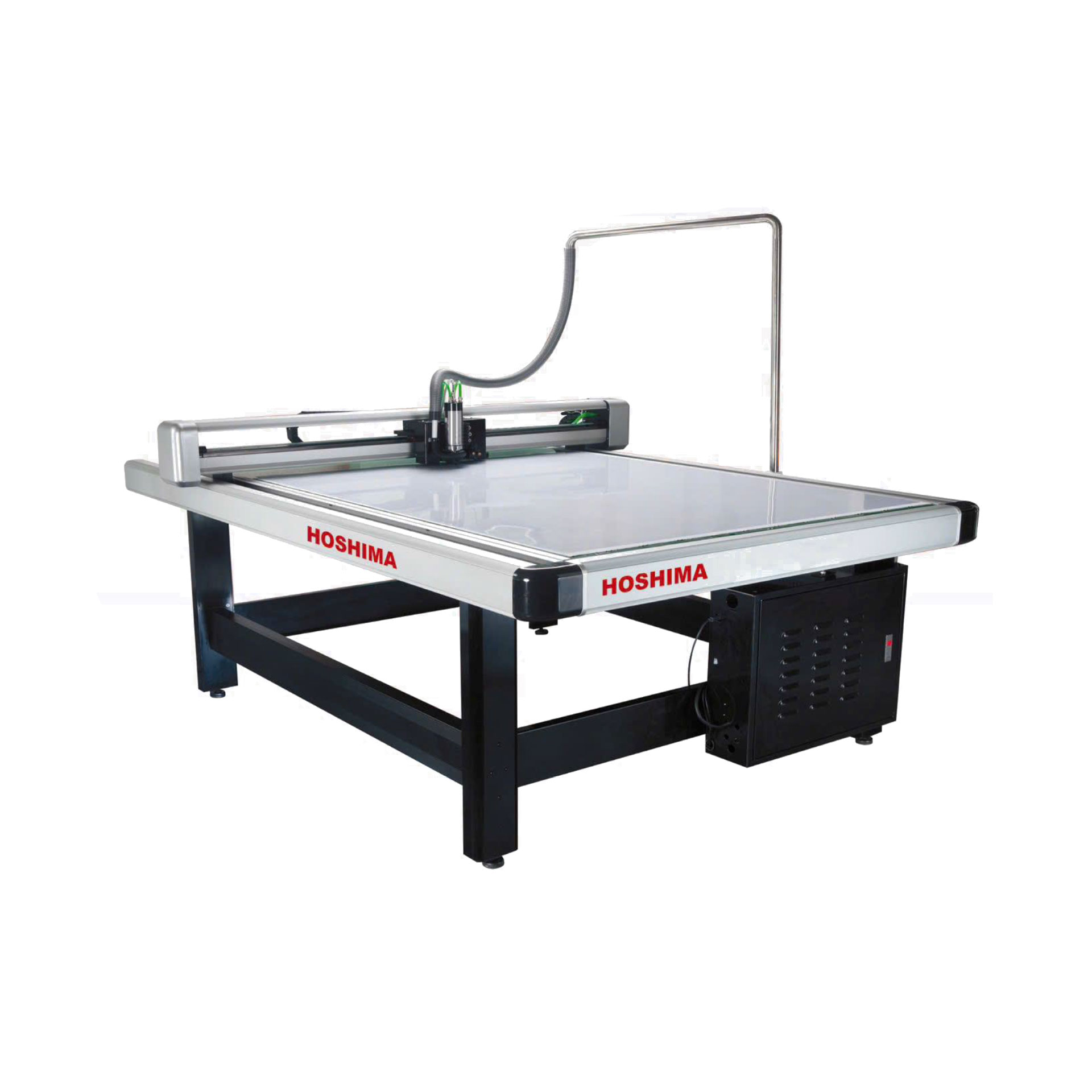

HSM-1512B Mica Template Cutting Machine: Draw & Cut CNC, 2-in-1 for Mica and Hard Paper

The HSM-1512B Mica Template Cutting Machine is an ultra-high-speed CNC milling, cutting, and drawing machine, purpose-built for manufacturing jigs/fixtures from acrylic (mica) and other non-metallic sheet materials and patterns. This is the machine behind the jig-making process feeding into Template Sewing Machines — a missing link many factories overlook when researching template sewing.

📖 If you’re researching template sewing machines that use an acrylic jig to hold components in place during sewing, see: “Template Sewing Machine: What It Is and How It Actually Works” — the HSM-1512B is the machine that manufactures that jig.

Why Does Mica Jig Cutting Need a Dedicated Machine?

Mica jigs used in template sewing machines require extremely high outline precision — even minor deviation can cause the fabric component to be held out of position, leading the programmed seam/laser-cutting path to execute incorrectly relative to the original design. For multi-layer jigs used with complex components (such as a 4-layer shirt collar), each jig layer must align absolutely precisely with the others. Manual cutting or a general-purpose cutter lacks the precision and speed needed for ongoing jig production.

Key Features of the HSM-1512B

• Integrated dust collection system: milling mica/board produces significant dust and debris; the dust collection system keeps the workspace clean.
• Full-aluminum, high-precision structure: the CNC gantry-frame body is formed in a single molding process, ensuring the highest industry-standard precision.
• Imported linear guide, imported CNC motor, and imported ultra-high-speed spindle: ensures absolute precise position control with no deviation.
• High-speed linear motor for the blade lift/lower mechanism: makes tool-in and tool-out actions more accurate and faster.
• Support for exporting different nested file templates: optimizes layout of multiple components on the same sheet of material.
• Real-time dynamic mechanical coordinate display: enables fast positioning and precise use of remaining material, reducing waste.
• Queue-based output: processes large volumes of work in an organized sequence.
• Offline operation: quickly frees up computer resources, unaffected by other tasks.
• Automatic cutter-diameter offset calculation: makes graphic editing more intuitive and simple.

HSM-1512B Technical Specifications

Key Difference: A “Draw” Function Alongside CNC Cutting

Unlike standard CNC cutting machines that only cut, the HSM-1512B supports both drawing and cutting on the same machine. The drawing function uses a pen head to mark lines, symbols, or information directly onto the paper/material surface — useful for marking assembly reference points, technical annotations, or notes on a paper pattern without cutting through the material.

Real-World Applications

• Manufacturing mica jigs for template sewing machines: precisely cutting multi-layer jig levels used to hold fabric components in place during sewing (e.g., jigs for shirt collars, cuffs, pocket flaps).
• Cutting hard paper patterns combined with marking: cutting the pattern shape while also drawing necessary reference symbols/guide lines on the same paper sheet.
• Machining other non-metallic board materials: suited to a range of non-metal sheet materials used in the workshop.

Which Businesses Should Invest in the HSM-1512B?

• Factories that have invested or are considering investing in Template Sewing Machines — needing a stable, precise, in-house jig supply instead of depending on outsourced fabrication.
• Pattern rooms needing to cut high-precision hard paper patterns combined with technical marking.
• Factories with multiple operations requiring multi-layer jigs — in-house production shortens lead time compared to outsourcing every time a new jig design is needed.

📖 See jig manufacturing cost and how to calculate ROI for template sewing machine investment in: “Template Sewing Machine Investment Cost: Is It Worth It Over Manual Sewing?”

Frequently Asked Questions

Can the HSM-1512B replace outsourcing mica jig fabrication?

Yes. For factories that regularly need new jigs for different designs, investing in a dedicated mica cutting machine gives control over jig production timelines instead of waiting on an outside fabricator — particularly important when precise multi-layer jigs are needed for multi-layer component operations.

What is the drawing function actually used for in practice?

The drawing function allows marking symbols, reference lines, or technical information directly onto a paper pattern without cutting through the material — useful for steps requiring visual notation before the pattern goes into production.

Can the machine cut materials besides mica and paper?

The machine is designed for non-metallic sheet materials in general and paper — consult the supplier’s technical team if you need to process other specialty materials beyond mica/board/paper.
